D2B Network Connection Order (Telematics)

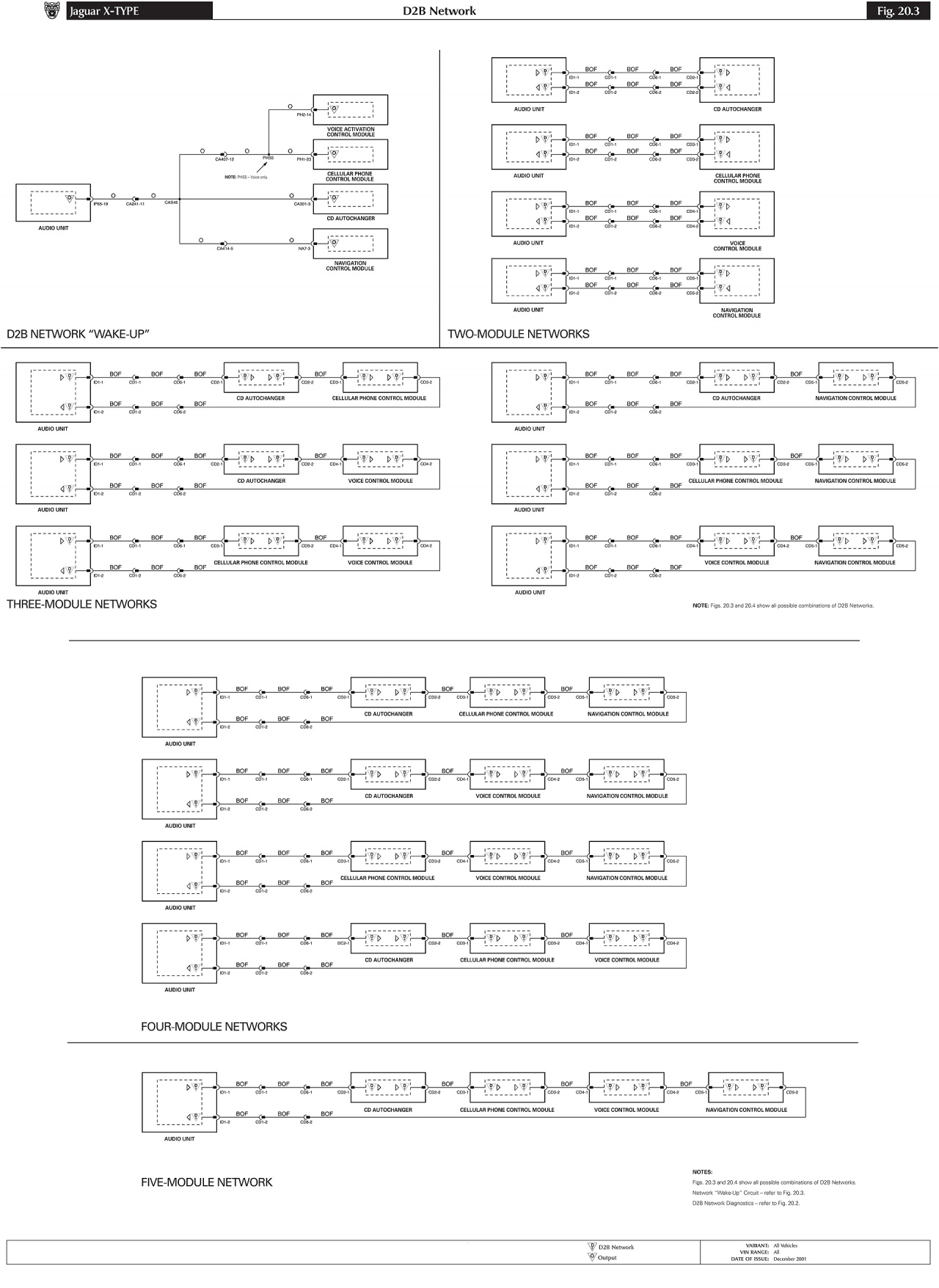

The D2B fibre optic network is a loop that links all the telematics (Phone, Satnav, Voice, CD Changer, Amp) with the CD/Radio Head Unit (the D2B gateway).

Need to add an extra fibre optic connection to your existing D2B fibre optic cable? How to modify your D2B fibre optic cable

The recommended connection order will aid diagnosis of problems from the headunit, but is not essential.

Head Unit CD Changer Phone Voice Nav Amp Head Unit

Just forget the bits you don't have, so if you don't have Voice or the amp your order should be...

Head Unit CD Changer Phone Nav Head Unit

Note: The D2B Network "Wakeup" is a connection within the wiring harnesses connecting all the telematic modules.
